20' STANDARD
- Inside Length 5.895 m
- Inside Height 2.392 m
- Door Width 2.340 m
- Door Height 2.292 m
- Capacity 33 m³
- Tare Weight 2230 Kgs
- Max Cargo Weight 28230 Kgs
Standard containers are also known as general purpose containers. They are closed containers, i.e. they are closed on all sides.
- Standard containers with doors at one or both end(s)
- Standard containers with doors at one or both end(s) and doors over the entire length
- Standard containers with doors at one or both end(s) and doors on one or both sides

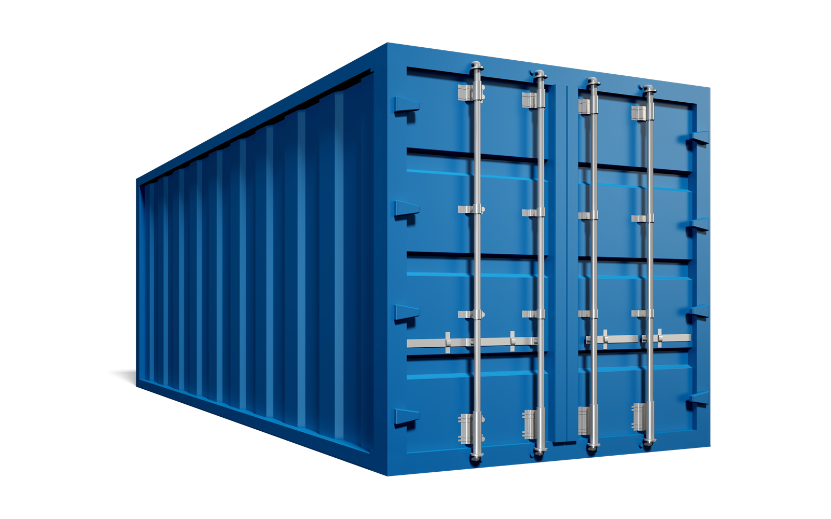

40' STANDARD
- Inside Length 12.029 m
- Inside Width 2.350 m
- Inside Height 2.392 m
- Door Width 2.340 m
- Door Height 2.292 m
- Capacity 67 m³
- Tare Weight 3780 Kgs
- Max Cargo Weight 26700 Kgs
Standard containers are also known as general purpose containers. They are closed containers, i.e. they are closed on all sides.
- Standard containers with doors at one or both end(s)
- Standard containers with doors at one or both end(s) and doors over the entire length
- Standard containers with doors at one or both end(s) and doors on one or both sides

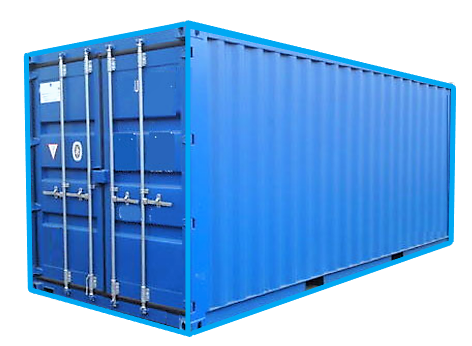

40' HIGH CUBE
- Inside Length 12.024 m
- Inside Width 2.350 m
- Inside Height 2.697 m
- Door Width 2.340 m
- Door Height 2.597 m
- Capacity 76 m³
- Tare Weight 4020 Kgs
- Max Cargo Weight 26460 Kgs
The walls are made of corrugated steel with a wooden floor. Features removable bows and tarpaulin roof with swivel-out door header.
- Easy loading from top when roof is open
- Lashing rings with 1,000 kg capacity
- Suitable for oversized cargo
- Enhanced height for additional cargo space
20' OPEN TOP
- Inside Length 5.888 m
- Inside Height 2.345 m
- Door Width 2.315 m
- Door Height 2.184 m
- Capacity 32 m³
- Tare Weight 2250 Kgs
- Max Cargo Weight 30480 Kgs
The walls of open-top containers are made of corrugated steel with a wooden floor. Features removable bows and tarpaulin roof with swivel-out door header.
- Easy loading from top or through doors
- Removable roof bows for stability
- Lashing rings with 1,000 kg capacity
- Suitable for crane or grab loading

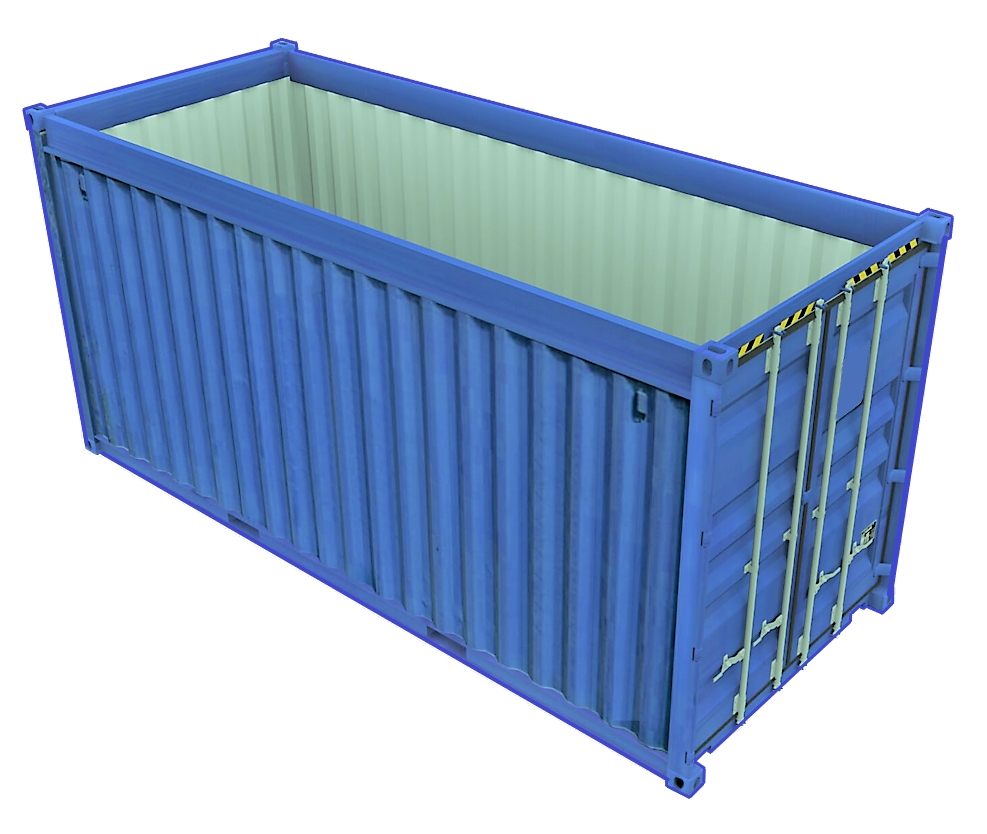

40' OPEN TOP
- Inside Length 12.029 m
- Inside Width 2.342 m
- Inside Height 2.326 m
- Door Width 2.341 m
- Door Height 2.274 m
- Capacity 55 m³
- Tare Weight 3810 Kgs
- Max Cargo Weight 26670 Kgs
The walls of open-top containers are made of corrugated steel with a wooden floor. Features removable bows and tarpaulin roof with swivel-out door header.
- Easy loading from top or through doors
- Removable roof bows for stability
- Lashing rings with 1,000 kg capacity
- Suitable for crane or grab loading

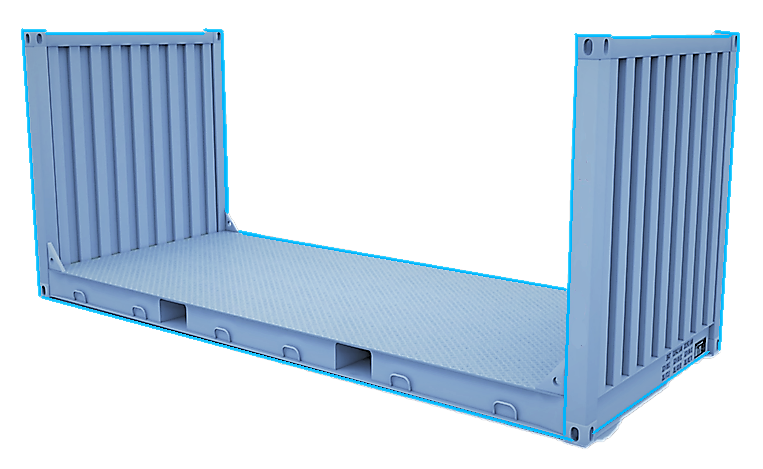

20' FLATRACK
- Inside Length 5.698 m
- Inside Width 2.230 m
- Inside Height 2.255 m
- Door Width 0.000 m
- Door Height 0.000 m
- Capacity 0 m³
- Tare Weight 2530 Kgs
- Max Cargo Weight 21,500 Kgs
Flatracks consist of a floor structure with a high loading capacity composed of a steel frame and a softwood floor and two end walls, which may either be fixed or collapsible.
- High loading capacity steel frame construction
- Lashing rings with up to 2000 kg capacity
- Available with forklift pockets
- Collapsible end walls for versatile loading
- Suitable for stackable cargo arrangements
40' FLATRACK
- Inside Length 11.832 m
- Inside Width 2.223 m
- Inside Height 1.981 m
- Door Width 3.000 m
- Door Height 0.000 m
- Capacity 0 m³
- Tare Weight 4,200 Kgs
- Max Cargo Weight 43,203 Kgs
Flatracks consist of a floor structure with a high loading capacity composed of a steel frame and a softwood floor, and two end walls, which may either be fixed or collapsible. The end walls are stable enough to allow cargo securing means to be attached and several flatracks to be stacked on top of one another. Flatracks are available in 20' and 40' sizes.
- A number of lashing rings in the side rails, corner posts, and floor to secure cargo
- Lashing rings support up to 2000 kg (20') or 4000 kg (40')
- Some 20' flatracks include forklift pockets
- 40' flatracks have gooseneck tunnels at each end
- Optional lashing winches with 2 metric ton lashing belts
20' FLATRACK COLLAPSIBLE
- Inside Length 5.675 m
- Inside Width 2.213 m
- Inside Height 2.270 m
- Door Width 0.000 m
- Door Height 0.000 m
- Capacity 0 m³
- Tare Weight 2,600 Kgs
- Max Cargo Weight 30,150 Kgs
Flatracks consist of a floor structure with a high loading capacity composed of a steel frame and a softwood floor and two end walls, which may either be fixed or collapsible. The end walls are stable enough to allow cargo securing means to be attached and several flatracks to be stacked on top of one another. Flatracks are available in 20' and 40' sizes.
- A number of lashing rings in the side rails, corner posts, and floor to secure cargo
- Lashing rings support up to 2000 kg (20') or 4000 kg (40')
- Some 20' flatracks include forklift pockets
- 40' flatracks have gooseneck tunnels at each end
- Optional lashing winches with 2 metric ton lashing belts

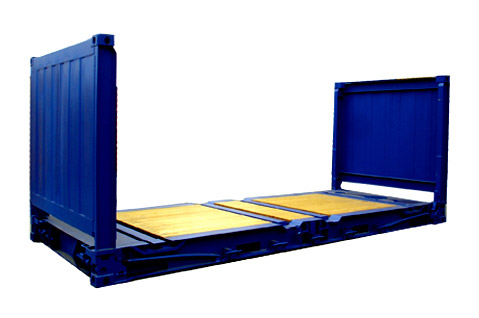

40' FLATRACK COLLAPSIBLE
- Inside Length 11.660 m
- Inside Width 2.200 m
- Inside Height 2.245 m
- Door Width 0.000 m
- Door Height 0.000 m
- Capacity 0 m³
- Tare Weight 5,700 Kgs
- Max Cargo Weight 39,300 Kgs
Flatracks consist of a floor structure with a high loading capacity composed of a steel frame and a softwood floor and two collapsible end walls.
- Lashing rings with up to 4000 kg capacity
- Gooseneck tunnels at each end
- Optional lashing winches with 2 metric ton capacity
- Collapsible end walls for space-saving storage
- Suitable for stackable cargo arrangements
20' PLATFORM
- Inside Length 6.058 m
- Inside Width 2.438 m
- Inside Height 0.370 m
- Door Width 0.000 m
- Door Height 0.000 m
- Capacity 0 m³
- Tare Weight 2,520 Kgs
- Max Cargo Weight 27,960 Kgs
Platforms consist solely of a floor structure with extremely high loading capacity; they have no side or end walls. This high loading capacity makes it possible to concentrate heavy weights on small areas.
- Steel frame with wooden floor structure
- Lashing rings with up to 3,000 kg capacity
- No side or end walls for maximum accessibility
- Suitable for heavy concentrated loads
- High loading capacity floor structure

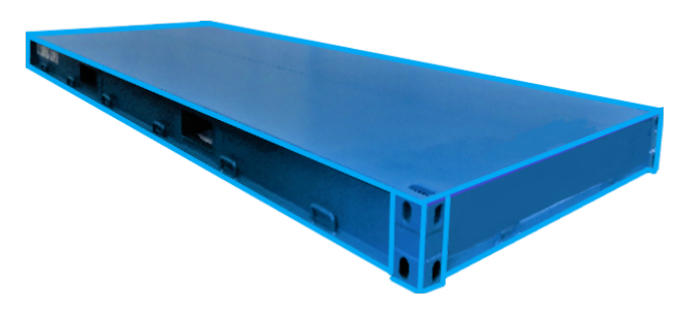

40' PLATFORM
- Inside Length 12.192 m
- Inside Width 2.245 m
- Inside Height 0.648 m
- Door Width 0.000 m
- Door Height 0.000 m
- Capacity 0 m³
- Tare Weight 5,700 Kgs
- Max Cargo Weight 39,300 Kgs
Platforms consist solely of a floor structure with extremely high loading capacity; they have no side or end walls. This high loading capacity makes it possible to concentrate heavy weights on small areas.
- Steel frame with wooden floor structure
- Lashing rings with up to 3,000 kg capacity
- Gooseneck tunnels at each end
- No side or end walls for maximum accessibility
- High loading capacity floor structure

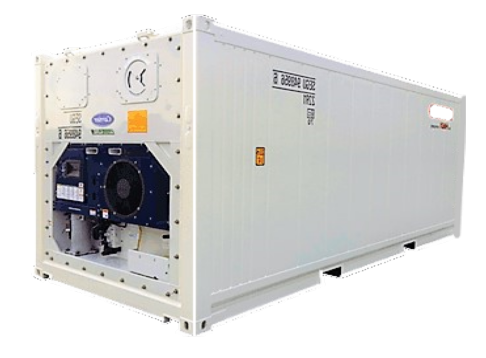

20' REFRIGERATED
- Inside Length 5.724 m
- Inside Width 2.286 m
- Inside Height 2.014 m
- Door Width 2.286 m
- Door Height 2.067 m
- Capacity 26 m³
- Tare Weight 2,550 Kgs
- Max Cargo Weight 21,450 Kgs
The refrigeration unit is arranged in such a way that the external dimensions of the container meet ISO standards and thus fit into the container ship cell guides, for example. The presence of an integral refrigeration unit entails a loss of internal volume and payload.
- Temperature controlled environment
- Integral refrigeration unit
- ISO standard compliant dimensions
- Suitable for perishable cargo
- Enhanced insulation for temperature maintenance
40' REFRIGERATED
- Inside Length 11.840 m
- Inside Width 2.286 m
- Inside Height 2.120 m
- Door Width 2.286 m
- Door Height 2.195 m
- Capacity 60 m³
- Tare Weight 3,850 Kgs
- Max Cargo Weight 26,630 Kgs
The refrigeration unit is arranged in such a way that the external dimensions of the container meet ISO standards and thus fit into the container ship cell guides, for example. The presence of an integral refrigeration unit entails a loss of internal volume and payload.
- Temperature controlled environment
- Integral refrigeration unit
- ISO standard compliant dimensions
- Enhanced insulation for temperature maintenance
- Suitable for long-distance transport of perishables

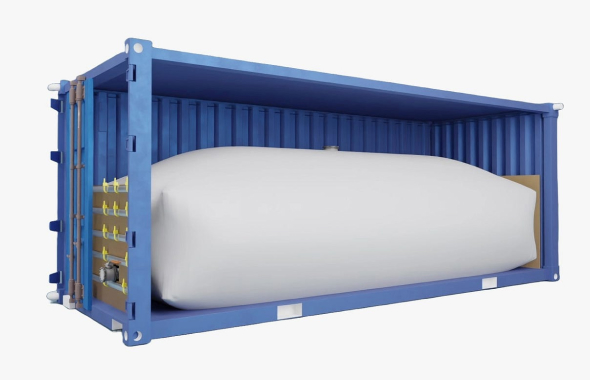

FLEXITANK CONTAINER
- Container Size 20' Standard
- Flexitank Capacity 16,000 - 24,000 L
- Max Fill Weight 24,000 Kgs
- Valve Size 3" (76 mm)
- Material Multi-layer PE
- Loading Time 45-60 mins
- Discharge Time 30-45 mins
- Temperature Range -40°C to +80°C
A Flexitank is a flexible, collapsible bladder designed to fit inside a standard 20' shipping container for transporting non-hazardous liquid bulk cargo. It provides a cost-effective, single-use solution that eliminates the need for return logistics of empty tanks.
- Single-use, eliminating cleaning costs
- Cost-effective for bulk liquids
- Food-grade options available
- Ideal for oils, wines, juices, and chemicals
- No contamination risk with single-use design
ISO TANK CONTAINER
- External Length 6.058 m
- External Width 2.438 m
- External Height 2.591 m
- Tank Capacity 21,000 - 26,000 L
- Max Gross Weight 36,000 Kgs
- Tare Weight 3,600 - 4,200 Kgs
- Working Pressure 4 - 6 Bar
- Test Pressure 6 - 10 Bar
ISO Tank Containers are cylindrical stainless steel tanks enclosed within a rectangular steel frame conforming to ISO dimensions. They are designed for the safe transport of bulk liquids, including hazardous chemicals, food-grade liquids, and gases across multiple transport modes.
- Stainless steel construction (316L grade)
- Suitable for hazardous and non-hazardous liquids
- Heating/cooling jacket options available
- Multi-modal transport compatible
- Reusable and environmentally friendly
